Solid State Drive
M.2 2280/2242 SATA
Product Series

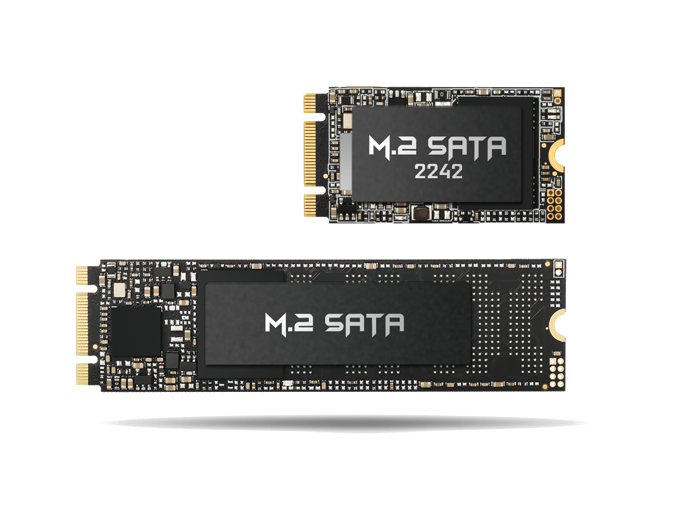

M.2 2280/2242 SATA
M.2 (NGFF) is a compact, high-performance interface for Ultrabooks, replacing mSATA with superior scalability for SSD capacity expansion.
OEM/ODM Customization Services
Package, Shell/casing, Label, BOM etc
Application
Edge computing, IOT, ITD, IPC, MEC, PPC
Specifications
Overall dimensions
42 mm x 22 mm x 3.5 mm
Interface type
M.2 NGFF
Transmission speed
SATAIII 6GBps
Capacity
128 GB || 256 GB | 1 TB
Continuous reading speed MB/s
≥450 | ≥450 | ≥480
Continuous write speed MB/s
≥350 | ≥400 | ≥400
NAND
3D TLC/QLC
Working voltage
DC 3.3V±5%
Working power consuption
2.35-2.65 W
Data saving
It can be stored for more than 10 years at 25°C
Error checking and correction
LDPC
Working temperature
0~70°C
Overall dimensions
80 mm x 22 mm x 3.5 mm
Interface type
M.2 NGFF
Transmission speed
SATAIII 6GBps
Capacity
128-256 GB | 512-1 TB | 2 TB
Continuous reading speed MB/s
450-500 | 450-500 | 500-550
Continuous write speed MB/s
360-450 | 450-500 | 500-520
NAND
3D TLC/QLC
Working voltage
DC 3.3V±5%
Working power consuption
2.35-2.65 W
Data saving
It can be stored for more than 10 years at 25°C
Error checking and correction
LDPC
Working temperature
0~70°C
